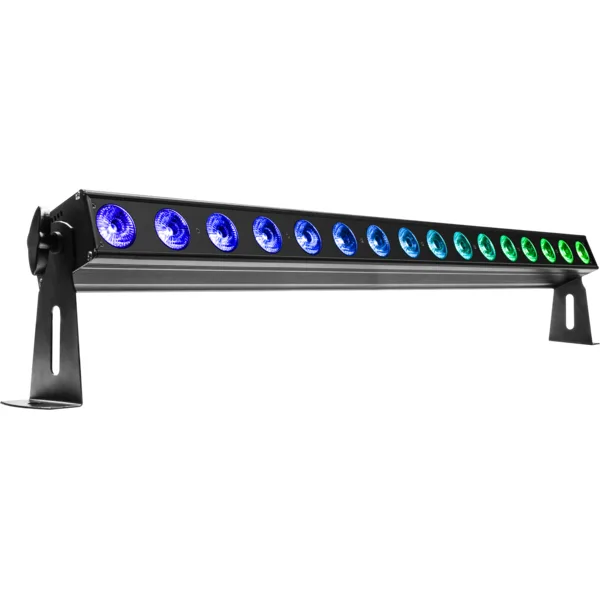

PROLIGHTS LUMIPIX16H

LUMIPIX16H is a 100cm linear LED batten. Designed for professional use utilising an innovative optical system combined with a new light source that performs: 6 primary colours - RGBWAP full colour - granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output, make LUMIPIX16H a flexible and versatile solution for every type of application or for use in venues, as the architectural, cyclorama, wall-washer, pixel effect or blinder.

Features:

• LED batten with 16 individually controllable RGBAW + UV LEDs
• Extensive colour palette and powerful output
• Flicker-free operation for IMAG and broadcast
• LIGHT SOURCE
• Source: 16x12 W RGBWAP LEDs
• Luminous flux: 3408 lm
• Lux: (15°) 1986 lux @3m full
• Source life expectancy: >50.000 h
• OPTICS
• Beam angle: 22 °
• Field angle: 36 °
• Lens diameter: 42 mm
• Additional optics: 25° and 45° (optional)
• COLOUR SYSTEM
• Colour mixing: RGBWAP/FC
• White presets: 3200-10000 K
• Colour wheel: virtual colour wheel with presets
• Macros: several pre-build pixel macros with adjustable speed
• DYNAMIC EFFECTS
• Static colour mode: selection of static colour
• Manual colour mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment
• BODY
• Body: sturdy aluminum profile
• Body colour: black
• CONTROL
• Protocols: DMX512
• DMX channels: 3 / 6 / 8 / 12 / 96 / 101 channel
• Pixel control: pixel2pixel control
• Display: LCD display
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain
• ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1-25 Hz, electronic
• Operating temperature: -10° ~ +45°
• Flicker: flicker free operation
• ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 164 W
• Power consumption (at 120V): 166 W
• Output (at 230V): 12 units on a single power line
• Power factor: pF 0.99 @ 120V - pF 0.94 @ 230V
• PHYSICAL
• Cooling: natural cooling of the peculiar chassis and to absence of fans
• Sospension and fixing: hanging bracket suitable for safe hanging and positioning
• Signal connection: XLR 3p+5p IN/OUT connectors
• Power connection: Neutrik powerCON IN/OUT connectors
• IP rating: 33
• Dimensions (WxHxD): 1000x180x63 mm
• Weight: 5.1 kg
• Accessories (INCLUDED)
• ARCLUMIL15D42 16x12W RGBWAP/FC LED batten, pixel control, 22° beam, IP33, 164W, 5.1 kg
