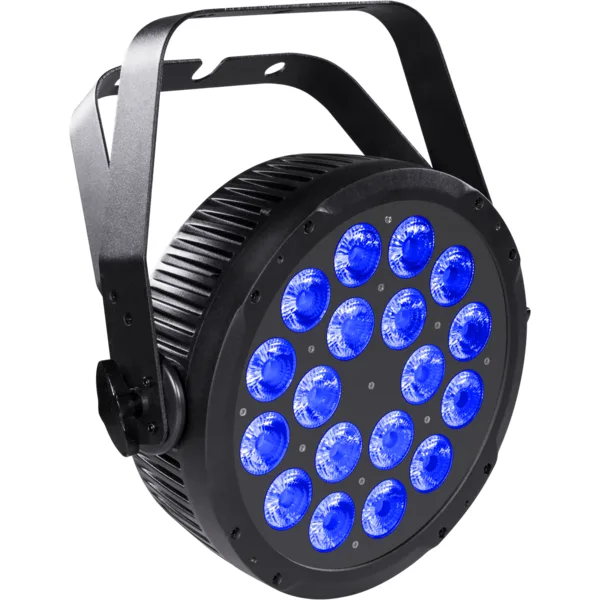

PROLIGHTS LUMIPAR18QTOUR

LUMIPAR18QTOUR is a super-slim PAR LED for professional use, designed to be a powerful wash light in rental/touring applications. The high-efficiency RGBW/FC LED light source, the ultra-thin design and absence of fans make LUMIPAR18QTOUR a big innovation compared to traditional PAR CANS, offering higher versatility, easy setup and reduced carrying volume.

Features:

• 18x10W RGBW LEDs
• Die-cast aluminium housing
• Flicker-free operation for IMAG and broadcast
• LIGHT SOURCE
• Source: 18x10 W RGBW LEDs
• CT: Tunable 2800K-8000 K
• Luminous flux: 4815 lm
• Lux: 3107 lux @3m full
• Source life expectancy: >50.000 h
• OPTICS
• Beam angle: 25 °
• Field angle: 35 °
• Lens diameter: 45 mm
• Additional optics: 15° (opt) - 45° (opt)
• COLOUR SYSTEM
• Colour mixing: RGBW/FC
• White presets: 3200-10000 K
• Colour wheel: virtual colour wheel with presets
• Macros: built-in white presets
• DYNAMIC EFFECTS
• Static colour mode: selection of static colour
• Manual colour mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment
• BODY
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black
• CONTROL
• Protocols: DMX512
• DMX channels: 4 / 6 / 10 channel
• Display: black OLED high resolution display
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain
• ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1-25 Hz, electronic
• Operating temperature: -10° ~ +45°
• Flicker: flicker free operation
• Selectable PWM: 600~25K Hz
• ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 161 W
• Power consumption (at 120V): 130 W
• Output (at 230V): 15 units on a single power line
• Output (at 120V): 8 units on a single power line
• PHYSICAL
• Cooling: natural cooling of the peculiar chassis and to absence of fans
• Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
• Signal connection: XLR 3p+5p IN/OUT connectors
• Power connection: Neutrik powerCON IN/OUT connectors
• IP rating: 30
• Dimensions (WxHxD): 349x280x278 mm
• Weight: 5.66 kg
• Accessories (INCLUDED)
• ARCLUMIL25D45 18x10W RGBW/FC LED par, super-slim design, IP30, 130W, 5,66 kg, 25°
