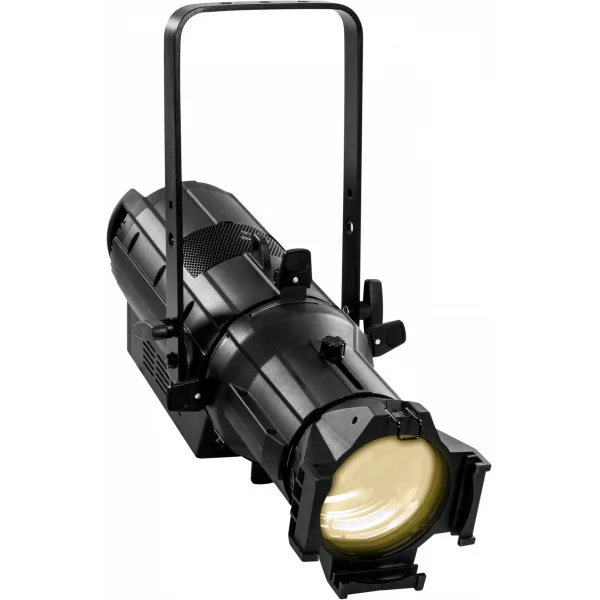

PROLIGHTS ECLIPSEHDTWCBK

ECLIPSEHDTWC is an advanced LED ellipsoidal featuring 6 colour mixing to deliver high precision reproduction of the white spectrum from 2800 to 10000K with high CRI and an extensive colour reproduction.

The optical system harnesses the power of a 91 x 3.5W custom LED with 6 colours to create an even beam with clean shutter cuts and beautiful sharp or soft edge gobo focusing.

Featuring HD dimming and tuning from 2800K to 10000K version, the ECLIPSEHDTWC delivers the performance and quality of output demanded from this level of light.

Features:

• Tunable White 2800K-10000K with high CRI and extensive colour mixing
• +/- green and magenta white tuning
• Advanced focusing
• LIGHT SOURCE
• Source: 91x3.5 W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
• CT: 2800 - 10000 K
• CRI: >90
• R9: (2800K) 91.9 - (4000K) 95.3 - (5600K) 92.8
• Luminous flux: (19°) 6044 lm, (26°) 5625 lm, (36°) 6279 lm, (50°) 5687 lm @Full
• Lux: (19°) 9220 lux, (26°) 4750 lux, (36°) 2980 lux, (50°) 1210 lux @3m full
• Source life expectancy: >50.000 h
• Other: TLCI: 86
• OPTICS
• Beam angle: optional 19°/26°/36°/50°/Z15-30°/Z25-50 °
• Lens type: high-quality glass lens optics
• Focus: manual
• COLOUR SYSTEM
• Colour mixing: RGBL,orange,royal blue
• CTC: CTC control through independent DMX channel, plus/minus green and magenta correction and amber shift activation by DMX
• White presets: 2800K - 10000 K
• Colour wheel: virtual colour wheel with presets
• DYNAMIC EFFECTS
• Gobo size: B
• BODY
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black
• CONTROL
• Protocols: DMX512, RDM
• DMX channels: 2 / 5 CH1 / 5 CH2 / 7 / 9 / 12 / 13 / 16 / 19 / 21 channel
• RDM: RDM ready for fixture remote monitor and settings
• Display: black OLED high resolution display
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain
• Other: 16bit control of dimmer and colour
• ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1-30 Hz, electronic
• Operating temperature: -10° ~ +45°
• Flicker: flicker free operation
• Selectable PWM: 600~25K Hz
• ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 252 W
• Power consumption (at 120V): 257 W
• Output (at 230V): 14 units on a single power line
• Output (at 120V): 7 units on a single power line
• Power factor: pF 0.99 @ 120V - pF 0.92 @ 230V
• PHYSICAL
• Cooling: combination of heat pipe cooling system and low noise fan
• Sospension and fixing: hanging bracket suitable for safe hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 262x531x595 mm
• Weight: 7.8 kg
