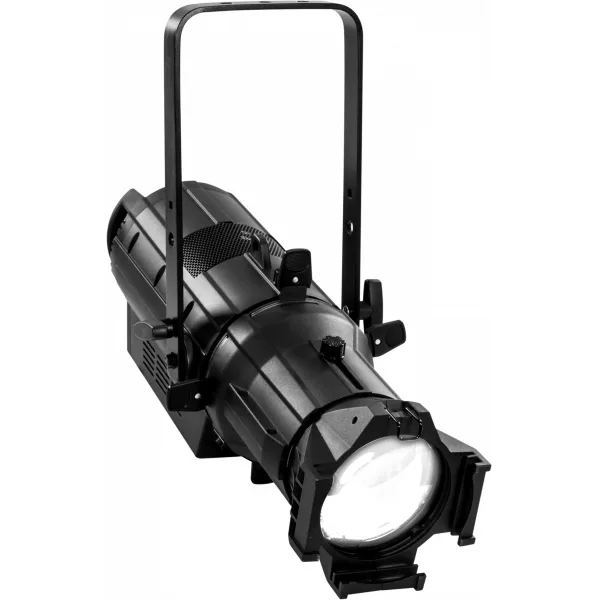

PROLIGHTS ECLIPSEHD2TUBK

ECLIPSEHD2 updates ECLIPSEHD ranges with extra brightness and higher CRI/R9/TLCI.

The fixture is a proper LED replacement for the traditional 750W Tungsten ellipsoidal luminaire. The optical system harnesses the power of a 230W COB LED to create an even beam with clean shutter cuts and beautiful sharp or soft edge gobo focusing.

Featuring HD dimming and available in a 3300K or 5400K, the ECLIPSEHD2 delivers the performance and quality of output demanded from this level of the luminaire.

Features:

• Outstanding brightness over 15K lm for DY and 14k lm for TU versions
• CRI>95 (DY) and CRI>97 (TU), High R9 and TLCI values
• LIGHT SOURCE
• Source: 230 W high-power white LED
• CT: (TU) 3300 K - (DY) 5400 K
• CRI: (TU) 97 - (DY) 95,5
• Luminous flux: (TU) 19°: 10989 lm; 26°: 13504 lm; 36°:13548 lm; 50°: 12020 lm - (DY) 19°: 11694 lm; 26°: 14466 lm; 36°:14454 lm; 50°: 12267 lm
• Lux: (TU) 19° 28800 lux; 26° 22300 lux; 36° 12600 lux; 50° 4150 lux @3m
• Lux: (DY) 19° 33000 lux; 26° 24300 lux; 36° 13900 lux; 50° 6000 lux @3m
• Source life expectancy: >50.000 h
• Other: TLCI: (TU) 19°: 90.5, 26°: 89.7, 36°: 92, 50°: 90
• OPTICS
• Beam angle: optional 19° / 26° / 36° / 50° / Z 15-30° / Z 25-50 °
• Lens type: high-quality glass lens optics
• Focus: manual
• COLOUR SYSTEM
• Colour mixing: static white
• DYNAMIC EFFECTS
• Gobo size: B
• Static colour mode: selection of static colour

Manual colour mode:

• Auto mode: built-in programs with execution speed adjustment
• BODY
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black
• CONTROL
• Protocols: DMX512, RDM
• DMX channels: 1 / 2 / 5 channel
• RDM: RDM ready for fixture remote monitor and settings
• Display: black OLED high resolution display
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain
• ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1-25 Hz, electronic
• Operating temperature: -10° ~ +45°
• Flicker: flicker free operation
• Selectable PWM: 600~25K Hz
• ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 229 W
• Power consumption (at 120V): 226 W
• Output (at 230V): 15 units on a single power line
• Output (at 120V): 8 units on a single power line
• PHYSICAL
• Cooling: combination of heat pipe cooling system and low noise fan
• Sospension and fixing: hanging bracket suitable for safe hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 528x342x526 mm
• Weight: 7,11 kg
