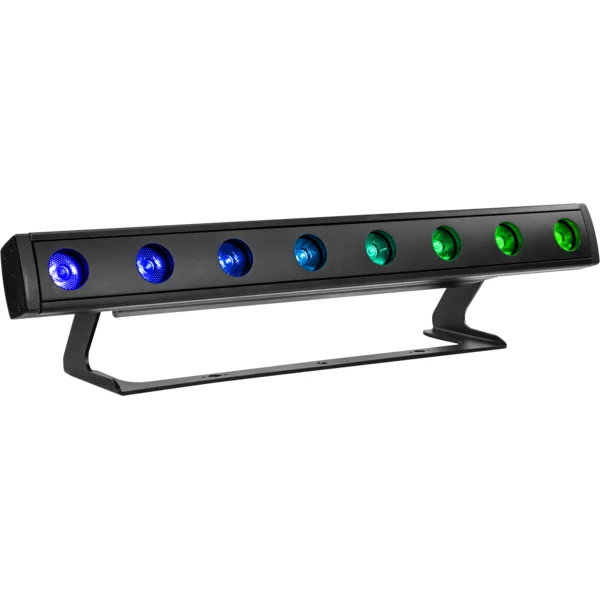

PROLIGHTS Z8STRIP

Z8STRIP is a new generation battery operated fixture that marks a new step in wireless lighting technology, being one of the brightest portable fixtures in the event industry. Z8STRIP is encased in IP65 rated housing allowing it to meet any working condition. Featuring 8x10W high-power RGBW full colour CREE LEDs pixel controlled to achieve high brightness and can also a favourite for temporary architectural installations. Z8STRIP is equipped with a lithium battery pack allowing it to be left out for up to 16 hours (colour-changing) and W-DMX control for full cable-free operations.

Features:

• Huge light output from a battery luminaire with 8x10W CREE XML RGBW LEDs
• Wireless DMX control, 8 hours battery life on full white and IP65 rating for incredible versatility
• On-board mains and DMX connectors for standard use
• LIGHT SOURCE
• Source: 8x10 W RGBW LEDs
• Luminous flux: 1064 lm
• Lux: 4600 lux @3m full
• Source life expectancy: >50.000 h
• OPTICS
• Beam angle: 10 °
• Field angle: 21 °
• Other: Magnetic holder for diffusion filters or gels
• COLOUR SYSTEM
• Colour mixing: RGBW/FC
• White presets: 3200~10000 K
• Colour wheel: virtual colour wheel with presets
• Macros: built-in white presets
• DYNAMIC EFFECTS
• Static colour mode: selection of static colour
• Manual colour mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment
• BODY
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black
• CONTROL
• Protocols: DMX512, W-DMX
• DMX channels: 4 / 6 / 10 / 32 / 37 channel
• Pixel control: pixel2pixel control
• W-DMX: included, wireless solution receiver
• Display: black OLED touch display
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain
• ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1-25 Hz, electronic
• Operating temperature: 0° ~ +35°
• Flicker: flicker free operation
• ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• BATTERY
• Battery: 14,8 V lithium
• Estimated battery life in colour change mode up to: 16 h
• Estimated battery life in single colour mode up to: R - 16h, G - 12.5h, B - 13h, W - 13 h
• Estimated battery life in full-mode up to: 6 h
• Re-charge connection: power cable
• Re-charge time: 5 h/max
• Battery status: shown on display
• PHYSICAL
• Cooling: natural cooling of the peculiar chassis and to absence of fans
• Sospension and fixing: hanging bracket suitable for safe hanging and positioning
• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Data connection: W-DMX receiver
• Power connection: Seetronic powerCON waterproof IN/OUT connectors
• IP rating: IP65 (front) - IP54 (bottom)
• Dimensions (WxHxD): 800x153x216 mm
• Weight: 10 kg
