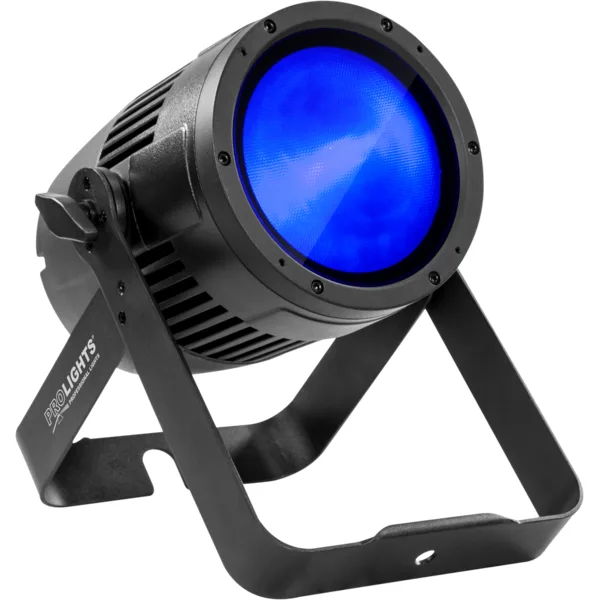

PROLIGHTS STUDIOCOBPLUSFCBK

LIGHT SOURCE

• Source: 150 W COB RGBW LED
• Luminous flux: 3949 lm, 3869 lm
• Lux: 3190 lux @3m full
• Lux: 734 lux
• Source life expectancy: >50.000 h

COLOUR SYSTEM

• Colour mixing: RGBW/FC
• CTC: CTC control through independent DMX channel
• White presets: 2000K~10000 K
• Colour wheel: virtual colour wheel with presets

DYNAMIC EFFECTS

• Static colour mode: selection of static colour
• Manual colour mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body conceived for long-time durability

Body colour: black, white finishing available

CONTROL

• Protocols: DMX512, RDM
• DMX channels: 4 / 6 / 10 channel
• RDM: RDM ready for fixture remote monitor and settings
• Display: black OLED touch display
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1-28 Hz, electronic
• Battery backup: battery backup for user operation without connecting to the main power
• Operating temperature: -20° ~ +45°
• Flicker: flicker free operation
• Selectable PWM: 600~25K Hz

ELECTRICAL

• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 135 W
• Power consumption (at 120V): 137 W
• Output (at 230V): 12 units on a single power line

PHYSICAL

• Cooling: forced air with low noise fan
• Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON waterproof IN/OUT connectors
• IP rating: 65 for outdoor installations
• Dimensions (WxHxD): 259x187x370 mm
• Weight: 5.6 kg

Accessories (INCLUDED)

STUDIOCOBPLUSL18 150W RGBW/FC LED projector, 38°, HD-dimming, IP65, 135W, 4.95 kg STUDIOCOBPLUSL38 150W RGBW/FC LED projector, 38°, HD-dimming, IP65, 135W, 4.95 kg
