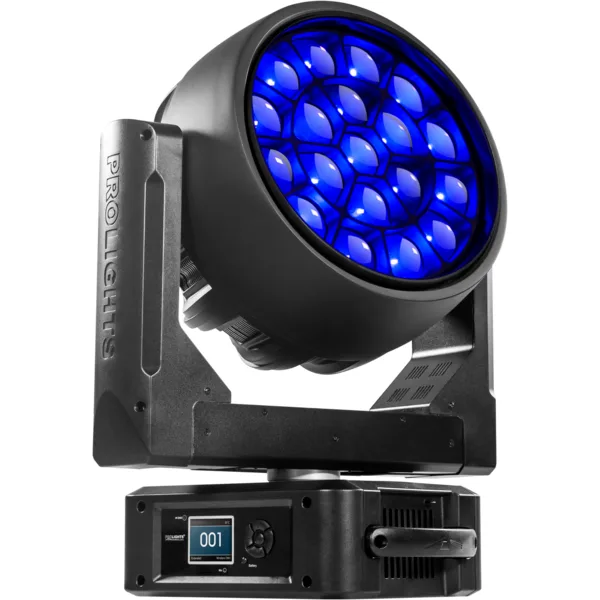

PROLIGHTS STARK1000CC

STARK1000CC and STARK400CC are pure wash light versions of the STARK automated luminaires. Made specifically for lighting designers who only need a wash light but do not want to give up the advanced optical system and brightness of the STARK series but only removing pixel control.

Features:

• 19x40W RGBW full-colour LEDs
• Unique optical system featuring 3°-45° zoom range and even light spread
• CT channel with white emulation: 2800-9000K
• Liquid cooling system for minimal noise
• LIGHT SOURCE
• Source: 19x40 W RGBW LED
• Luminous flux: 31800 lm
• Lux: 86800 lux @3m full
• Lux: 39600 lux @5m full
• Source life expectancy: >50.000 h
• OPTICS
• Zoom: 3°-45 ° motorised linear zoom
• Lens type: high-quality glass lens optics
• COLOUR SYSTEM
• Colour mixing: RGBW/FC
• CTC: CTC control through independent DMX channel
• White presets: 2000~10000 K
• Colour wheel: virtual colour wheel with presets
• BODY
• Pan angle: 540/630 °
• Tilt angle: 233 °
• Pan/Tilt resolution: bit 16 bit
• Feedback: automatic repositioning after accidental movement
• Body: aluminium structure with hi-resistance polycarbonate cover
• Body colour: black
• CONTROL
• Protocols: DMX512, RDM
• W-DMX: optional, wireless solution receiver
• RDM: RDM ready for fixture remote monitor and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: via menu with internal memory or via USB-DMX interface (UPBOX2) not included
• Hibernation: power safe mode when lost DMX
• Master/Slave: for synchronized operation of more units linked in a chain
• ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Strobe / shutter: 1-25 Hz, electronic
• Battery backup: battery backup for user operation without connecting to the main power
• Operating temperature: -10° ~ +45°
• Flicker: flicker free operation
• ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 585 W
• PHYSICAL
• Cooling: combination of heat pipe cooling system and low noise fan
• Sospension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: pan / tilt locking for transportation and maintenance
• Signal connection: Amphenol XLR 3p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN connector
• IP rating: 20
• Dimensions (WxHxD): 430.5x563.1x235 mm
• Weight: 18.70 kg
• Accessories (INCLUDED)
• OS24 LED washlight 19x40W Osram LED RGBW/FC, 3-45° zoom, 18 kg WR24ANG5 LED washlight 19x40W Osram LED RGBW/FC, 3-45° zoom, 18 kg
