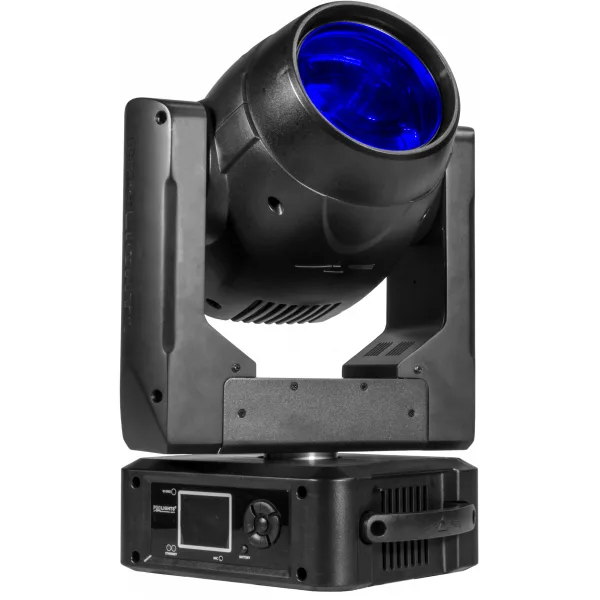

PROLIGHTS RUBYFCX

The PROLIGHTS RUBYFCX is a LED replacement for a discharge beam light. Maintaining the bright, tight,  2° beam and adding full colour mixing through the high-efficiency RGB source.

RUBYFCX is packed with all the features you would expect from a beam effect moving the light - such as gobos, 8f circular and 6f linear prism, frost and infinite pan and tilt rotation.

Features:

• 50W RGB LED source incredibly bright and colourful
• Infinite pan & tilt rotation delivers new aerial effects
• Control through DMX, Art-Net and Wireless DMX
• LIGHT SOURCE
• Source: 50 W RGB LED
• Lux: 141929 lux @3m full
• Lux: 51094 lux @5m full
• Source life expectancy: >50.000 h
• OPTICS
• Beam angle: 2 °
• Lens diameter: 116 mm
• Lens type: high-quality glass lens optics
• Focus: motorised
• COLOUR SYSTEM
• Colour mixing: RGB/FC
• CTC: CTC control through independent DMX channel
• White presets: 2000 - 8000 K
• Colour wheel: virtual colour wheel with presets
• Macros: several pre-build pixel macros with adjustable speed
• DYNAMIC EFFECTS
• Fixed gobos: 17 fixed gobos + open
• Circular prism: 8 f with bi-directional rotation, indexing
• Linear prism: 6 f with bi-directional rotation, indexing
• Frost: frost unit to soften the beam edge
• BODY
• Pan angle: 540/630 ° with 360° continuous rotation
• Tilt angle: 265 ° with 360° continuous rotation
• Pan/Tilt resolution: bit 16 bit
• Feedback: automatic repositioning after accidental movement
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black
• CONTROL
• Protocols: DMX512, RDM, Art-Net,W-DMX
• DMX channels: 18 / 20 / 22 / 23 channel
• W-DMX: included, wireless solution receiver
• RDM: RDM ready for fixture remote monitor and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
• Hibernation: power safe mode when lost DMX
• Master/Slave: for synchronized operation of more units linked in a chain
• ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Strobe / shutter: 1-30 Hz, electronic
• Battery backup: battery backup for user operation without connecting to the main power
• Operating temperature: 0° ~ +45°
• Flicker: flicker free operation
• ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 122 W
• Power consumption (at 120V): 124 W
• PHYSICAL
• Cooling: forced air with low noise fan
• Sospension and fixing: any position with quick-lock omega brackets
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Data connection: Art-Net RJ45 IN/OUT
• Power connection: Seetronic powerCON IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 294x471x200 mm
• Weight: 12 kg
