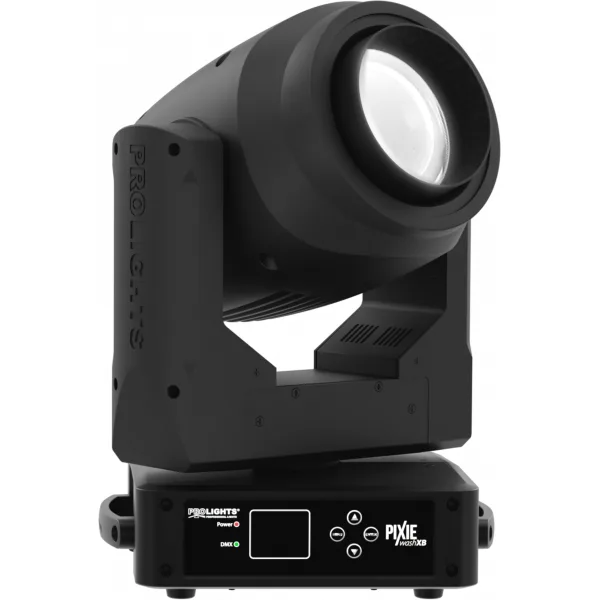

PROLIGHTS PIXIEWASHXB

PIXIEWASHXB reinvents the concept of the moving LED wash light; bringing together the classic styling of a traditional wash luminaire and applying the very latest innovations in the field of LED technology. The large frontal plano-convex lens delivers a stunning level of brightness and an exceptional zoom range with a 1:8 ratio, combined with a proprietary 280W RGB + warm white LED module delivering a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning. PIXIEWASH is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being compact, fast and silent, the PIXIEWASHXB offers unprecedented flexibility is ideal for use in theatres, TV, corporate and festivals.

Features:

• 280W proprietary RGB + warm white LED delivering high CRI, TLCI, TM30 values
• 6 to 45 linear zoom with superior evenness
• Art-net and WDMX on-board
• LIGHT SOURCE
• Source: 280 W RGB + warm white
• CT: 6500 K
• CRI: >92
• R9: >94
• Luminous flux: (6°) 3670 lm - (45°) 3795 lm
• Lux: (6°) 29900 lux - (45°) 1590 lux @3m full
• Lux: (6°) 10764 lux - (45°) 572 lux @5m full
• Source life expectancy: 70000
• Other: TM-30-15RF/RG: 90/99 - TLCI: >85
• OPTICS
• Zoom: 6° - 45 ° motorised linear zoom
• Field angle: 11° - 43 °
• Lens diameter: 125 mm
• Lens type: high-quality glass lens optics
• COLOUR SYSTEM
• Colour mixing: RGB+Warm White
• CTC: CTC control through independent DMX channel, plus/minus green and magenta correction and amber shift activation by DMX
• White presets: 2800K-10000 K
• Colour wheel: virtual colour wheel with presets
• Macros: several pre-build macros with adjustable speed
• BODY
• Hardware on-board: OMEGA sockets for quick rigging (clamp included)
• Pan angle: 540 °
• Tilt angle: 250 °
• Pan/Tilt resolution: 8/16 bit
• Feedback: automatic repositioning after accidental movement
• Body: aluminium die-casting
• Body colour: black
• CONTROL
• Protocols: DMX512, RDM, Art-Net,W-DMX
• DMX channels: 15 / 18 / 22 / 23 channel
• W-DMX: included, wireless solution receiver
• RDM: RDM ready for fixture remote monitor and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: different dimming curves available
• Strobe / shutter: 1-30 Hz, electronic
• Battery backup: battery backup for user operation without connecting to the main power
• Operating temperature: -10° ~ +45°
• Flicker: flicker free frequency with adjustable PWM
• ELECTRICAL
• Power consumption: 338W
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 338 W
• Power consumption (at 120V): 342 W
• Output (at 230V): 3 units on a single power line
• Output (at 120V): 2 units on a single power line
• Power factor: pF 0.99 @ 120V - pF 0.95 @ 230V
• PHYSICAL
• Cooling: combination of heat pipe cooling system and low noise fan
• Sospension and fixing: any position with quick-lock omega brackets
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Data connection: Art-Net RJ45 IN/OUT
• Power connection…
