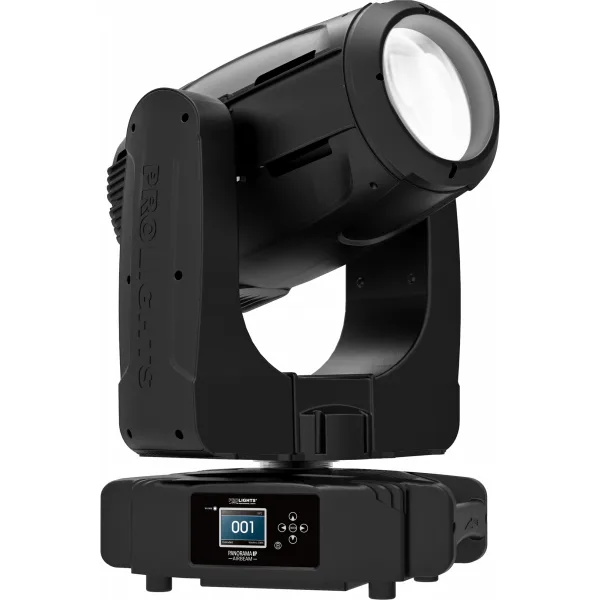

PROLIGHTS PANORAMAIPAB

PANORAMAIPAIRBEAM is a stunning IP65 moving beam light which delivers an unbelievable bright, fat 2° beam ideal for an outdoor searchlight and big air look. Designed to make a statement, the PANORAMAIPAIRBEAM can truly make an event stand out or fill a large outdoor space with spectacular beams.

Features:

• Powerful 440W S Osram HTI lamp combined with 167mm HD front lens for bright 2° beam
• IP65 rated
• Extensive set of effects including linear CMY mixing, rotating gobo wheel, static gobo wheel, circular and linear prisms, linear frost and focus
• LIGHT SOURCE
• Source: 440 W S Osram Sirius HRI
• CT: 7000 K
• CRI: 80
• Luminous flux: 12457 lm
• Lux: 1270259 lux @5m
• Lux: 317565 lux @10m
• Source life expectancy: 1.500 h
• OPTICS
• Beam angle: 2 °
• Lens diameter: 167 mm
• Lens type: high-quality glass lens optics
• Focus: motorised with auto-focus
• COLOUR SYSTEM
• Colour mixing: CMY colour system on 3 gradually fading colour wheels
• CTC: on wheel 2500K and 3200K + CTB
• Colour wheel: 13 dichroic filters + open on 3 independent colour wheels
• DYNAMIC EFFECTS
• Rotating gobos: 9 rotating gobos + open, interchangeable, indexing
• Fixed gobos: 15 fixed gobos + open
• Gobo size: gobo Ø 15.9 mm - img vØ 9 mm - 1.1 mm
• FX generator: prisms overlap for spectacular aerial effects
• Circular prism: 16 f with bi-directional rotation, indexing
• Linear prism: 6 f with bi-directional rotation, indexing
• Frost: linear 0-100% frost filter
• BODY
• Pan angle: 630-540 °
• Tilt angle: 230 °
• Pan/Tilt resolution: bit 16 bit
• Feedback: automatic repositioning after accidental movement
• Body: aluminium structure with hi-resistance polycarbonate cover
• Body colour: black
• CONTROL
• Protocols: DMX512, RDM, Art-Net,W-DMX
• DMX channels: 19 / 22 / 28 channel
• W-DMX: included, wireless solution receiver
• RDM: RDM ready for fixture remote monitor and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: via menu with internal memory or via USB-DMX interface (UPBOX2) not included
• Hibernation: power safe mode when lost DMX
• ELECTRONICS
• Dimmer: linear 0~100% mechanical dimmer
• Strobe / shutter: 1-28 flash(s), mechanical
• Operating temperature: -20° ~ +45°
• ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 522 W
• Power consumption (at 120V): 522 W
• PHYSICAL
• Cooling: forced air with low noise fan
• Sospension and fixing: any position with quick-lock omega brackets
• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Data connection: Art-Net RJ45 IN/OUT
• Power connection: Neutrik powerCON TRUE1 IN connector
• IP rating: 65 for temporary outdoor application, not for fixed installation
• Dimensions (WxHxD): 441x746x312 mm
• Weight: 39 kg
• Accessories (INCLUDED)
• OSHRI440W IP65 hybrid moving, Osram sirius HRI 440W S HRI, CMY + 13 colors, 2°, 36 kg
