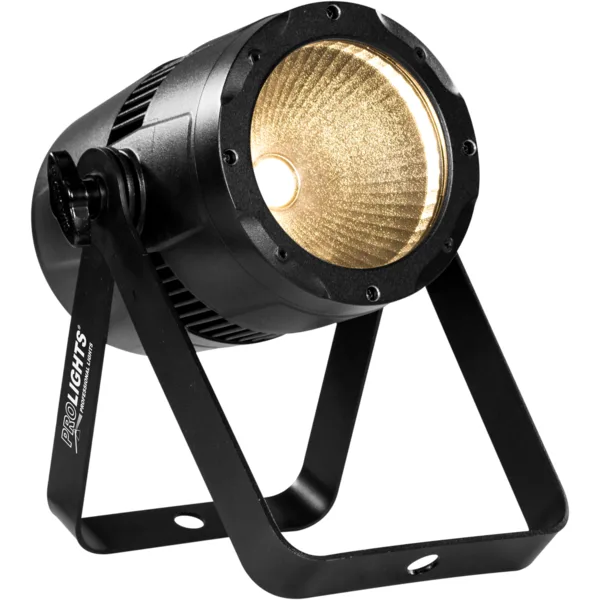

PROLIGHTS DISPLAYCOBWW

DISPLAYCOBWW is the compact version of the popular STUDIOCOBWW - perfect for an installation or indoor venues.

DISPLAYCOBWW employs a 45W COB LED source tungsten white 3200K, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output of 97 CRI and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).

Features:

• Compact LED PAR with high CRI 45W warm white COB source
• HD dimming and an extensive and even colour palette
• Flexible lens options of 15°, 30° and 60° and functional barn doors
• LIGHT SOURCE
• Source: 45 W white COB LED
• CT: 3200 K
• CRI: >97
• Luminous flux: 1682 lm
• Lux: (60°) 244.7 lux @3m
• Lux: (30°) 659.4 lux @3m
• Source life expectancy: >30.000 h
• OPTICS
• Beam angle: 60 °
• Field angle: 80 °
• Lens type: dichroic parabolic reflector in combination with HD fresnel lens
• Additional optics: 30° (inc) - 15° (opt)
• DYNAMIC EFFECTS
• Static colour mode: selection of static colour
• Manual colour mode: manual adjustment of dimmer and strobe
• Auto mode: built-in programs with execution speed adjustment
• BODY
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black
• CONTROL
• Protocols: DMX512
• DMX channels: 1 / 2 / 5 channel
• Display: black OLED high resolution display
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain
• ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1-28 Hz, electronic
• Operating temperature: -10° ~ +45°
• Flicker: flicker free operation
• Selectable PWM: 600~25K Hz
• ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 62 W
• Power consumption (at 120V): 57 W
• Output (at 230V): 24 units on a single power line
• PHYSICAL
• Cooling: natural cooling of the peculiar chassis and to absence of fans
• Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
• Signal connection: XLR 5p IN/OUT connectors
• Power connection: moulded IP power IN connector
• IP rating: 20
• Dimensions (WxHxD): 166x118x250 mm
• Weight: 1.85 kg
• Accessories (INCLUDED)
• DISPLAYCOBL30 1x45W WW COB CREE LED 3200K projector, beam angle 60°, IP20, 52W, 1,85 kg
