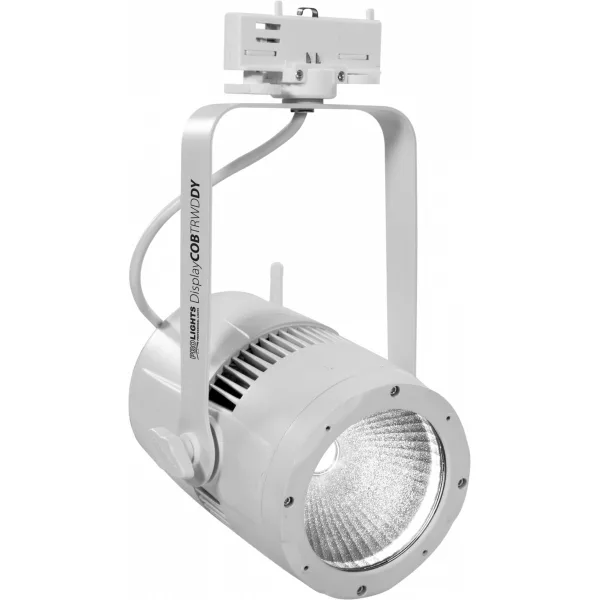

PROLIGHTS DISPLAYCOBTRWDDY

DISPLAYCOBTRWDDY is the track mount version of DISPLAYCOBDY. Featuring elegant white housing and Wireless DMX module on-board allowing for the remote control of the light making it the perfect solution for installation in commercial spaces, showrooms, museums and churches.

DISPLAYCOBTRWDDY employs 45W COB LED source daylight white 5000K combined with a special parabolic reflector built-in aluminium which develops an extremely bright and homogeneous output and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.)

Features:

• Track mounted compact LED PAR with 45W cold white COB source and wireless DMX control
• HD dimming and an extensive and even colour palette
• Flexible lens options of 15°, 30° and 60° and functional barn doors
• LIGHT SOURCE
• Source: 45 W white COB LED
• CT: 5000 K
• CRI: >91
• Luminous flux: 1841 lm
• Lux: (60°) 291.1 lux @3m
• Lux: (30°) 869.1 lux @3m
• Source life expectancy: >30.000 h
• OPTICS
• Beam angle: 60 °
• Field angle: 80 °
• Lens type: dichroic parabolic reflector in combination with HD fresnel lens
• Additional optics: 30° (inc) - 15° (opt)
• DYNAMIC EFFECTS
• Static colour mode: selection of static colour
• Manual colour mode: manual adjustment of dimmer and strobe
• Auto mode: built-in programs with execution speed adjustment
• BODY
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: white
• CONTROL
• Protocols: DMX512, W-DMX
• DMX channels: 1 / 2 / 5 channel
• W-DMX: included, wireless solution receiver
• Display: black OLED high resolution display
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain
• ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1-25 Hz, electronic
• Operating temperature: -10° ~ +45°
• Flicker: flicker free operation
• Selectable PWM: 600~25K Hz
• ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 62 W
• Power consumption (at 120V): 57 W
• Output (at 230V): 24 units on a single power line
• PHYSICAL
• Cooling: natural cooling of the peculiar chassis and to absence of fans
• Sospension and fixing: track-adapter included for suspension and fixing
• Signal connection: XLR 5p IN/OUT connectors
• Power connection: track adaptor (EUTRAC, STAFF, GLOBAL, IVELA compatible)
• IP rating: 20
• Dimensions (WxHxD): 166x118x290 mm
• Weight: 1.85 kg
• Accessories (INCLUDED)
• TRACKADAWH 45W CW COB CREE LED 5000K projector, 60°, IP20, 54W, 1,85 kg, track, WDMX DISPLAYCOBL30 45W CW COB CREE LED 5000K projector, 60°, IP20, 54W, 1,85 kg, track, WDMX
