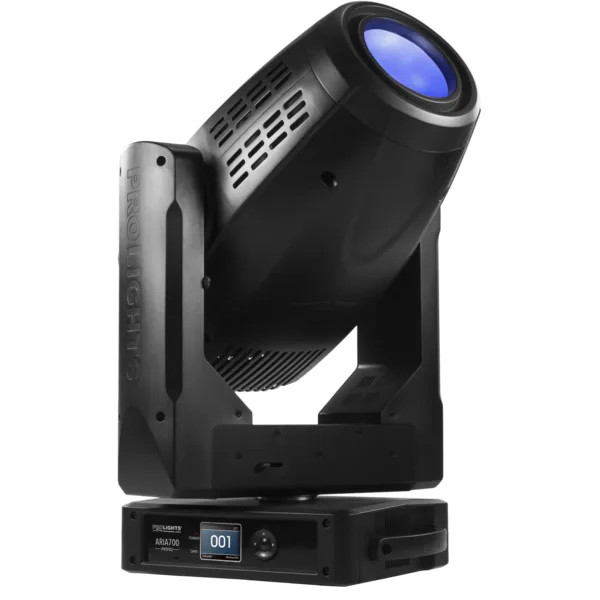

PROLIGHTS ARIA700PROFILE

ARIA700 is a 400W theatrical LED light designed to bring refinement and silence to the stage. Featuring a custom RGBW engine which delivers an extensive colour palette and an optical system designed to allow the layering of effects. The ARIA700 puts the theatre into LED.

Features:

• Full spectrum RGBW LED engine for extensive pastel colour palette and HD dimming
• A near-silent operation for use even in front of house
• Animation wheel and full-framing shutters with individual depth and angle control of each blade as well as module index
• LIGHT SOURCE
• Source: 400 W custom RGBW LED
• CT: Tunable 2700K~8000 K
• Luminous flux: 6153 lm
• Lux: (10°) 22361 - (45°) 2166 lux @3m full
• Lux: (10°) 8050 - (45°) 780 lux @5m full
• Source life expectancy: >50.000 h
• OPTICS
• Zoom: 10-45 ° motorised linear zoom
• Lens type: HD anti-reflection lenses with achromatic coating
• Focus: motorised with auto-focus
• Other: High-quality flat-field projection
• COLOUR SYSTEM
• Colour mixing: RGBW/FC
• CTC: CTC control through independent DMX channel
• White presets: 2000K ~ 8000 K
• Colour wheel: virtual colour wheel with presets
• DYNAMIC EFFECTS
• Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
• Animation wheel: animation wheel with CW and CCW rotation
• Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
• Gobo size: gobo Ø 27 mm - img Ø 21 mm - 1.1 mm
• FX generator: shutter macros with adjustable speed
• Circular prism: 3 f with bi-directional rotation, indexing
• Frost: linear 0-100% frost filter
• Iris: 5-100 % motorised linear iris
• BODY
• Pan angle: 540 °
• Tilt angle: 270 °
• Pan/Tilt resolution: bit 16 bit
• Feedback: automatic repositioning after accidental movement
• Body: aluminium structure with hi-resistance polycarbonate cover
• Body colour: black
• CONTROL
• Protocols: DMX512, RDM, Art-Net,W-DMX
• DMX channels: 33 / 38 / 39 channel
• W-DMX: included, wireless solution receiver
• RDM: RDM ready for fixture remote monitor and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1-28 Hz, electronic
• Operating temperature: -10° ~ +45°
• Flicker: flicker free operation
• ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 463 W
• Power consumption (at 120V): 467 W
• Output (at 230V): 8 units on a single power line
• Output (at 120V): 4 units on a single power line
• PHYSICAL
• Cooling: combination of heat pipe cooling system and low noise fan
• Sospension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: pan / tilt locking for transportation and maintenance
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Data connection: Art-Net RJ45 IN/OUT
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 408x526x474 mm
• Weight: 26 kg
